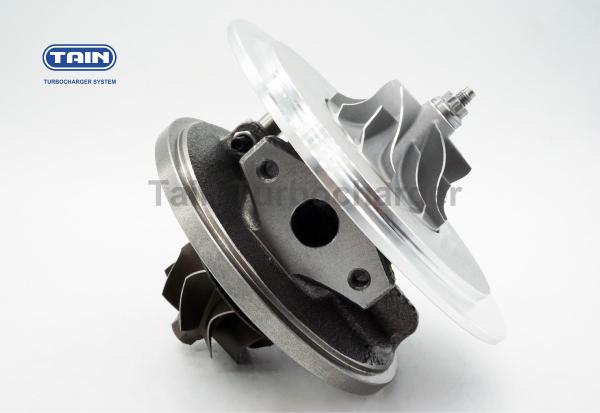

GT1852V Turbocharger Cartridge 778794-0001 A6110960799 For Mercedes-Benz Sprinter OM611
PRODUCTION DETAILS
♦ PART NO.
709835-0001 709835-0002 709835-0002
709836-0001 709836-0003 709836-0004
709836-0005 711006-0001 711006-0003
711006-0004 726698-0001 726698-0002
726698-0003 778794-0001 778794-0002
♦ OE No.
A6110960799 A6110960399 6110960899
A6110960899 A6110960999
♦ CHRA No.
703890-0045
♦ MODEL
GT1852V
♦ Balancing test
<0.5Mg.mm / 150000RPM
♦ Condition
This is a high-quality brand new CHRA (cartridge or core assembly) of a turbocharger for forming or
building up a complete turbo.
♦ APPLICATION
| VEHICLE |
Power |
OEM |
Engine Code |
|
Mercedes Benz E Class W210
|
141HP |
A6110960399 |
OM611 |
|
Mercedes Benz C Class W202
|
141HP |
A6110960399 |
OM611 |
|
Mercedes Benz E Class W210
|
104kw |
A6110960799 |
OM611 |
|
Mercedes Benz C Class W202
|
141HP |
A6110960399 |
OM611 |
|
Mercedes Benz Sprinter Van
|
141HP |
6110960899 |
OM611Euro3 |
|
Mercedes Benz Sprinter
|
105KW |
A6110960899 |
OM611 |
|
Mercedes Benz C Class
|
105KW |
6110960999 |
OM611 W203 |
|
Mercedes Benz New C class(W203) C220 cdi
|
104KW |
A6110960999 |
OM611 W203 |
| Mercedes Benz Sprinter |
110KW |
6110961699 |
OM611 Corazon Euro3 |
♦ Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 44.2 |
39.9 |
9 |
| |
|
|
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 36.8 |
52 |
6/6 |
♦ Material
| Turbine wheel |
K418 |
| Turbine shaft |
42CrMo |
| Compressor wheel |
C355(Aluminum casting) |
| Bearing house |
HT250(Gary iron) |
| Journal bearing |
CW713R |
| Thrust bearing |
Brass bar |
| Thrust collar & spacer |
42CrMo |
WHAT WE SUPPLY
Tain supplies high-performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett), Borg Warner(KKK), MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
